Mixer Form

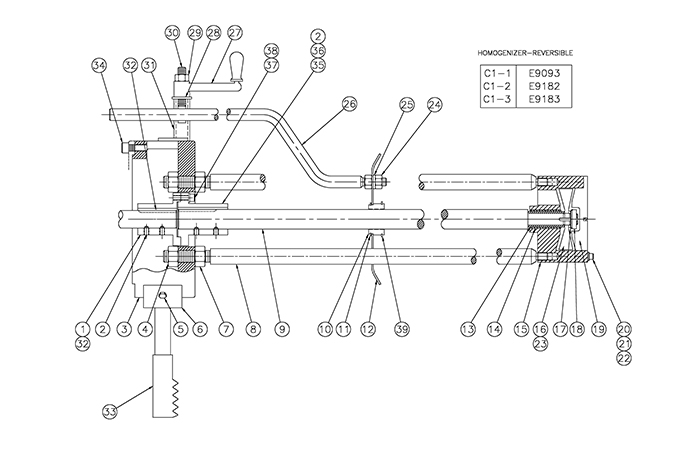

Home  >  High Shear Homogenizing Mixer (REVERSIBLE HOMOGENIZERS)  >  Model C-1-1 33" Immersion  >

Parts



Displaying items 1 - 49 of 49
Prices may change without notification

SKU Item # Name Our Price
C90324S 1 MOTOR - COUPLING $194.00 Add MOTOR - COUPLING to Cart
S31C050SSS 2 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG STEEL $1.00 Add 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG STEEL to Cart
S31C050SSM 2 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG 316 S/S $5.00 Add 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG 316 S/S to Cart
D90308-1I 3 MOTOR HOUSING - MACHINED $898.00 Add MOTOR HOUSING - MACHINED to Cart
N75CHHS 4 3/4-16 UNF HEX NUT, STEEL (REPLACED N75FHHS) $1.00 Add 3/4-16 UNF HEX NUT, STEEL (REPLACED N75FHHS) to Cart
S31C075HHL 5 5/16-18 X 3/4" HEX HD CAP SCREW S/S $1.00 Add 5/16-18 X 3/4" HEX HD CAP SCREW S/S to Cart
C9062S 6 BRACKET ASSY - HANDLE BAR $125.00 Add BRACKET ASSY - HANDLE BAR to Cart
N75CHHM 7 3/4-16 HEX NUT, 316 S/S (REPLACED N75FHHL) $5.00 Add 3/4-16 HEX NUT, 316 S/S (REPLACED N75FHHL) to Cart
B90332M 8 SUPPORT RODS 33" IMMER. (REPLACED B90332L) $284.00 Add SUPPORT RODS 33" IMMER. (REPLACED B90332L) to Cart
B90245-1M 9 MIXER SHAFT 316 S/S (REPLACED B90245-1l) $731.00 Add MIXER SHAFT 316 S/S (REPLACED B90245-1l) to Cart
B90289N 10 BAFFLE BUSHING, SPLIT $76.00 Add BAFFLE BUSHING, SPLIT to Cart
RR3100-187-SSL 11 RETAINING RING, S/S $11.00 Add RETAINING RING, S/S to Cart
C90250-1M 12 BAFFLE PLATE (REPLACED C90250-1L) $250.00 Add BAFFLE PLATE (REPLACED C90250-1L) to Cart
B90157P 13 BEARING SLEEVE $172.00 Add BEARING SLEEVE to Cart
B90369C 13 STELLITE BUSHING (SLEEVE) $838.00 Add STELLITE BUSHING (SLEEVE) to Cart
B90156R 14 RULON BEARING $177.00 Add RULON BEARING to Cart
B90156JA 14 RULON "J" BEARING $156.00 Add RULON "J" BEARING to Cart
B90423C 14 STELLITE BEARING $605.00 Add STELLITE BEARING to Cart
C90243-2M 15 ROTOR HOUSING - MACHINED (REPLACED C90243-2M) $1,426.00 Add ROTOR HOUSING - MACHINED (REPLACED C90243-2M) to Cart
B9067-2M 16 ROTOR ASSY 5/35 DEG. 316 S/S $546.00 Add ROTOR ASSY 5/35 DEG. 316 S/S to Cart
B9067-2P 16 5/35 DEG. ROTOR (17-4 PH) $579.00 Add 5/35 DEG. ROTOR (17-4 PH) to Cart
B9079-2M 16 4/35 DEG. ROTOR (316 S/S) $420.00 Add 4/35 DEG. ROTOR (316 S/S) to Cart
WS-03LL 17 WS-03 BEARING LOCKWASHER S/S $18.00 Add WS-03 BEARING LOCKWASHER S/S to Cart
NS-03LL 18 NS-03 BEARING LOCKNUT S/S $13.00 Add NS-03 BEARING LOCKNUT S/S to Cart
B9176M 18 COVER NUT ASSY (ABRAS. RES) 316 S/S $136.00 Add COVER NUT ASSY (ABRAS. RES) 316 S/S to Cart
C9119-8M 19 ABRASION RESISTANT LOWER STATOR $296.00 Add ABRASION RESISTANT LOWER STATOR to Cart
B9109-3L 19 LOWER STATOR ASSY $79.00 Add LOWER STATOR ASSY to Cart
W25FM 20 1/4" I.D. FLAT WASHER $1.00 Add 1/4" I.D. FLAT WASHER to Cart
W25LM 21 1/4" 316 S/S SPRING LOCKWASHER (REPLACED W25LL) $1.00 Add 1/4" 316 S/S SPRING LOCKWASHER (REPLACED W25LL) to Cart
S25C063SHM 22 1/4-20 UNC X 5/8" LONG SOC. HD. CAP SCREW $2.00 Add 1/4-20 UNC X 5/8" LONG SOC. HD. CAP SCREW to Cart
B90543-2M 23 3/16" SQ. X 5/8" ROTOR KEY 316 S/S $11.00 Add 3/16" SQ. X 5/8" ROTOR KEY 316 S/S to Cart
N50CHHM 24 1/2-13 UNC HEX NUT (REPLACED N50CHHL) $1.00 Add 1/2-13 UNC HEX NUT (REPLACED N50CHHL) to Cart
W50LM 25 LOCKWASHER (REPLACED W50LL) $1.00 Add LOCKWASHER (REPLACED W50LL) to Cart
C90223-1M 26 BAFFLE ROD $226.00 Add BAFFLE ROD to Cart
B90220-1I 27 CRANK LOCK - CRANK HANDLE CAST IRON $58.00 Add CRANK LOCK - CRANK HANDLE CAST IRON to Cart
W50F31905 28 1/2" I.D. JERGENS HARDENED WASHER $3.00 Add 1/2" I.D. JERGENS HARDENED WASHER to Cart
N50CHHFLS 29 1/2-13 UNC HEX NUT STEEL (FLEXLOC) $2.00 Add 1/2-13 UNC HEX NUT STEEL (FLEXLOC) to Cart
N50CHHFLL 29 1/2-13 FLEXLOC NUT S/S $13.00 Add 1/2-13 FLEXLOC NUT S/S to Cart
B90221-3L 30 BRACKET - CHOKE BOLT $33.00 Add BRACKET - CHOKE BOLT to Cart
C9063-1L 31 BRACKET - CLAMP ASSY (REPLACED C9063-1S) $144.00 Add BRACKET - CLAMP ASSY (REPLACED C9063-1S) to Cart
B90544-5M 32, 36 1/4" SQ. X 2" ROTOR KEY 316 S/S $18.00 Add 1/4" SQ. X 2" ROTOR KEY 316 S/S to Cart
1256 33 #1256 PLASTIC HUNT-WILDE HANDLE $3.00 Add #1256 PLASTIC HUNT-WILDE HANDLE to Cart
S44C125SHS 34 7/16-14 UNC X 1-1/4 SOC HD CAP SCREW $2.00 Add 7/16-14 UNC X 1-1/4 SOC HD CAP SCREW to Cart
C90323S 35 SHAFT - COUPLING $204.00 Add SHAFT - COUPLING to Cart
C90323M 35 SHAFT - COUPLING 316 S/S $526.00 Add SHAFT - COUPLING 316 S/S to Cart
S31C100SHS 37 5/16-18 UNC 1" LONG SOC. HD CAP SCREW $1.00 Add 5/16-18 UNC 1" LONG SOC. HD CAP SCREW to Cart
W31LM 38 5/16" 316 S/S SPRING LOCKWASHER (REPLACED W31LS) $1.00 Add 5/16" 316 S/S SPRING LOCKWASHER (REPLACED W31LS) to Cart
RR3100-200-SSL 39 RETAINING RING, S/S $12.00 Add RETAINING RING, S/S to Cart
B9111S   SPANNER WRENCH (ACCESSORY TOOL FOR LOCKNUT) $181.00 Add SPANNER WRENCH (ACCESSORY TOOL FOR LOCKNUT) to Cart
