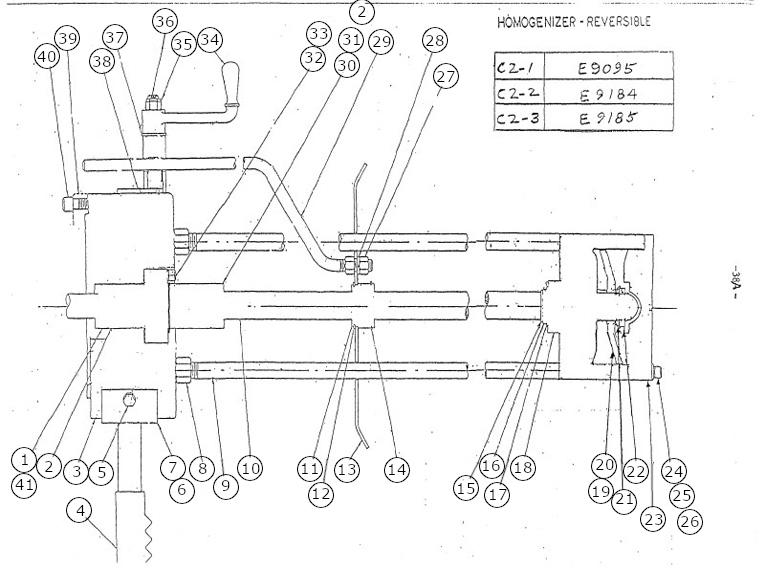

Home  >  High Shear Homogenizing Mixer (REVERSIBLE HOMOGENIZERS)  >  Model C-2-2 45" Immersion  >

Parts



Displaying items 1 - 52 of 52
Prices may change without notification

SKU Item # Name Our Price
C90324S 1 MOTOR - COUPLING $194.00 Add MOTOR - COUPLING to Cart
S31C050SSS 2 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG STEEL $1.00 Add 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG STEEL to Cart
D90308-2I 3 MOTOR HOUSING - MACHINED $1,001.00 Add MOTOR HOUSING - MACHINED to Cart
1256 4 #1256 PLASTIC HUNT-WILDE HANDLE $3.00 Add #1256 PLASTIC HUNT-WILDE HANDLE to Cart
S31C075HHL 5 5/16-18 X 3/4" HEX HD CAP SCREW S/S $1.00 Add 5/16-18 X 3/4" HEX HD CAP SCREW S/S to Cart
N75CHHS 6 3/4-16 UNF HEX NUT, STEEL (REPLACED N75FHHS) $1.00 Add 3/4-16 UNF HEX NUT, STEEL (REPLACED N75FHHS) to Cart
C9062S 7 BRACKET ASSY - HANDLE BAR $125.00 Add BRACKET ASSY - HANDLE BAR to Cart
N75CHHM 8 3/4-16 HEX NUT, 316 S/S (REPLACED N75FHHL) $5.00 Add 3/4-16 HEX NUT, 316 S/S (REPLACED N75FHHL) to Cart
B90523-1M 9 SUPPORT RODS 45" IMMER. $463.00 Add SUPPORT RODS 45" IMMER. to Cart
B90252-2M 10 MIXER SHAFT 316 S/S 45" IMMER. $850.00 Add MIXER SHAFT 316 S/S 45" IMMER. to Cart
B90289N 11 BAFFLE BUSHING, SPLIT $150.00 Add BAFFLE BUSHING, SPLIT to Cart
RR3100-187-SSL 12 RETAINING RING, S/S $11.00 Add RETAINING RING, S/S to Cart
D90322-2M 13 BAFFLE PLATE $264.00 Add BAFFLE PLATE to Cart
RR3100-200-SSL 14 RETAINING RING, S/S $12.00 Add RETAINING RING, S/S to Cart
RR5160-125L 15 RETAINING RING S/S $13.00 Add RETAINING RING S/S to Cart
B90101P 16 BEARING SLEEVE $194.00 Add BEARING SLEEVE to Cart
B90370C 16 STELLITE BUSHING (SLEEVE) $685.00 Add STELLITE BUSHING (SLEEVE) to Cart
B90069R 17 RULON BEARING $131.00 Add RULON BEARING to Cart
B90069JA 17 RULON "J" BEARING $188.00 Add RULON "J" BEARING to Cart
B90390C 17 STELLITE BEARING $823.00 Add STELLITE BEARING to Cart
D90253-2M 18 ROTOR HOUSING - MACHINED $1,770.00 Add ROTOR HOUSING - MACHINED to Cart
B90544-2M 19 1/4" SQ. X 5/8" LG KEY S/S $12.00 Add 1/4" SQ. X 5/8" LG KEY S/S to Cart
C9066-1P 20 5/24 DEG. ROTOR ASS'Y 17-4 PH $578.00 Add 5/24 DEG. ROTOR ASS'Y 17-4 PH to Cart
C9066-1M 20 5/24 DEG. ROTOR ASS'Y 316 S/S $785.00 Add 5/24 DEG. ROTOR ASS'Y 316 S/S to Cart
C9082-1L 20 4/24 DEG ROTOR ASS'Y 304 S/S $433.00 Add 4/24 DEG ROTOR ASS'Y 304 S/S to Cart
C9082-2L 20 4/35 DEG ROTOR ASS'Y 304 S/S $541.00 Add 4/35 DEG ROTOR ASS'Y 304 S/S to Cart
C9082-2M 20 4/35 DEG ROTOR ASS'Y 316 S/S $541.00 Add 4/35 DEG ROTOR ASS'Y 316 S/S to Cart
WS-06LL 21 WS-06 BEARING LOCKWASHER S/S $7.00 Add WS-06 BEARING LOCKWASHER S/S to Cart
B9120M 22 COVER NUT ASSY (ABRAS. RES.) 316 S/S $147.00 Add COVER NUT ASSY (ABRAS. RES.) 316 S/S to Cart
NS-06LL 22 NS-06 BEARING LOCKNUT S/S $24.00 Add NS-06 BEARING LOCKNUT S/S to Cart
C9049-3M 23 LOWER STATOR ASS'Y $235.00 Add LOWER STATOR ASS'Y to Cart
C9119-5M 23 ABRAS. RES. LOWER STATOR $290.00 Add ABRAS. RES. LOWER STATOR to Cart
W25FM 24 1/4" I.D. FLAT WASHER $1.00 Add 1/4" I.D. FLAT WASHER to Cart
W25LM 25 1/4" 316 S/S SPRING LOCKWASHER (REPLACED W25LL) $1.00 Add 1/4" 316 S/S SPRING LOCKWASHER (REPLACED W25LL) to Cart
S25C063SHM 26 1/4-20 UNC X 5/8" LONG SOC. HD. CAP SCREW $2.00 Add 1/4-20 UNC X 5/8" LONG SOC. HD. CAP SCREW to Cart
N50CHHM 27 1/2-13 UNC HEX NUT (REPLACED N50CHHL) $1.00 Add 1/2-13 UNC HEX NUT (REPLACED N50CHHL) to Cart
W50LM 28 LOCKWASHER (REPLACED W50LL) $1.00 Add LOCKWASHER (REPLACED W50LL) to Cart
C90524-1M 29 BAFFLE ROD 45" IMMER. $448.00 Add BAFFLE ROD 45" IMMER. to Cart
C90323S 30 SHAFT - COUPLING $204.00 Add SHAFT - COUPLING to Cart
C90323M 30 SHAFT - COUPLING 316 S/S $526.00 Add SHAFT - COUPLING 316 S/S to Cart
B90544-5M 31, 41 1/4" SQ. X 2" ROTOR KEY 316 S/S $18.00 Add 1/4" SQ. X 2" ROTOR KEY 316 S/S to Cart
W31LM 32 5/16" 316 S/S SPRING LOCKWASHER (REPLACED W31LS) $1.00 Add 5/16" 316 S/S SPRING LOCKWASHER (REPLACED W31LS) to Cart
S31C100SHS 33 5/16-18 UNC 1" LONG SOC. HD CAP SCREW $1.00 Add 5/16-18 UNC 1" LONG SOC. HD CAP SCREW to Cart
B90220-1I 34 CRANK LOCK - CRANK HANDLE CAST IRON $58.00 Add CRANK LOCK - CRANK HANDLE CAST IRON to Cart
N50CHHFLS 35 1/2-13 UNC HEX NUT STEEL (FLEXLOC) $2.00 Add 1/2-13 UNC HEX NUT STEEL (FLEXLOC) to Cart
N50CHHFLL 35 1/2-13 FLEXLOC NUT S/S $13.00 Add 1/2-13 FLEXLOC NUT S/S to Cart
B90221-4L 36 BRACKET - CHOKE BOLT $35.00 Add BRACKET - CHOKE BOLT to Cart
W50F31905 37 1/2" I.D. JERGENS HARDENED WASHER $3.00 Add 1/2" I.D. JERGENS HARDENED WASHER to Cart
C9063-2S 38 BRACKET - CLAMP ASSY $144.00 Add BRACKET - CLAMP ASSY to Cart
S44C125SHS 40 7/16-14 UNC X 1-1/4 SOC HD CAP SCREW $2.00 Add 7/16-14 UNC X 1-1/4 SOC HD CAP SCREW to Cart
A17V   O-RING VITON 2-120 (FOR SEAL PLATE) $1.00 Add O-RING VITON 2-120 (FOR SEAL PLATE) to Cart
B9112S   SPANNER WRENCH (ACCESSORY TOOL FOR LOCKNUT) $182.00 Add SPANNER WRENCH (ACCESSORY TOOL FOR LOCKNUT) to Cart
