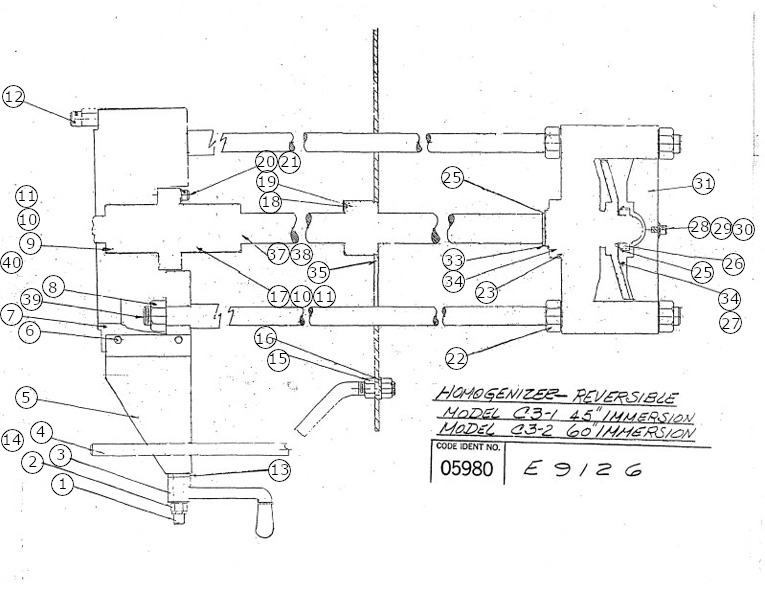

Home  >  High Shear Homogenizing Mixer (REVERSIBLE HOMOGENIZERS)  >  Model C-3-2 60" Immersion  >

Parts



Displaying items 1 - 49 of 49
Prices may change without notification

SKU Item # Name Our Price
B90221-3L 1 BRACKET - CHOKE BOLT $33.00 Add BRACKET - CHOKE BOLT to Cart
N50CHHFLS 2 1/2-13 UNC HEX NUT STEEL (FLEXLOC) $2.00 Add 1/2-13 UNC HEX NUT STEEL (FLEXLOC) to Cart
N50CHHFLL 2 1/2-13 FLEXLOC NUT S/S $13.00 Add 1/2-13 FLEXLOC NUT S/S to Cart
B90220-1I 3 CRANK LOCK - CRANK HANDLE CAST IRON $58.00 Add CRANK LOCK - CRANK HANDLE CAST IRON to Cart
C9069-2S 5 SUPPORT BRACKET, STEEL $203.00 Add SUPPORT BRACKET, STEEL to Cart
C9069-2L 5 SUPPORT BRACKET, 304 S/S $295.00 Add SUPPORT BRACKET, 304 S/S to Cart
S31C075HHL 6 5/16-18 X 3/4" HEX HD CAP SCREW S/S $1.00 Add 5/16-18 X 3/4" HEX HD CAP SCREW S/S to Cart
D90308-3I 7 MOTOR HOUSING - MACHINED $898.00 Add MOTOR HOUSING - MACHINED to Cart
N75CHHS 8 3/4-16 UNF HEX NUT, STEEL (REPLACED N75FHHS) $1.00 Add 3/4-16 UNF HEX NUT, STEEL (REPLACED N75FHHS) to Cart
C90325S 9 COUPLING - MOTOR (25 HP ONLY) $218.00 Add COUPLING - MOTOR (25 HP ONLY) to Cart
C90324S 9 MOTOR - COUPLING $194.00 Add MOTOR - COUPLING to Cart
B90544-4M 10 1/4" SQ. X 1-5/8" LG KEY S/S $17.00 Add 1/4" SQ. X 1-5/8" LG KEY S/S to Cart
S31C050SSS 11 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG STEEL $1.00 Add 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG STEEL to Cart
S44C150SHS 12 SOC. HD. CAP SCREW, 7/16-14 X 1-1/5" $2.00 Add SOC. HD. CAP SCREW, 7/16-14 X 1-1/5" to Cart
W50F31905 13 1/2" I.D. JERGENS HARDENED WASHER $3.00 Add 1/2" I.D. JERGENS HARDENED WASHER to Cart
B90041-2M 14 BAFFLE ROD $348.00 Add BAFFLE ROD to Cart
N50CHHM 15 1/2-13 UNC HEX NUT (REPLACED N50CHHL) $1.00 Add 1/2-13 UNC HEX NUT (REPLACED N50CHHL) to Cart
W50LM 16 LOCKWASHER (REPLACED W50LL) $1.00 Add LOCKWASHER (REPLACED W50LL) to Cart
C90323S 17 SHAFT - COUPLING $204.00 Add SHAFT - COUPLING to Cart
C90323M 17 SHAFT - COUPLING 316 S/S $526.00 Add SHAFT - COUPLING 316 S/S to Cart
RRN5000-200HL 18 RETAINING RING S/S $12.00 Add RETAINING RING S/S to Cart
B90146N 19 BAFFLE BUSHING, SPLIT $68.00 Add BAFFLE BUSHING, SPLIT to Cart
W31LM 20 5/16" 316 S/S SPRING LOCKWASHER (REPLACED W31LS) $1.00 Add 5/16" 316 S/S SPRING LOCKWASHER (REPLACED W31LS) to Cart
S31C100SHS 21 5/16-18 UNC 1" LONG SOC. HD CAP SCREW $1.00 Add 5/16-18 UNC 1" LONG SOC. HD CAP SCREW to Cart
N75CHHM 22 3/4-16 HEX NUT, 316 S/S (REPLACED N75FHHL) $5.00 Add 3/4-16 HEX NUT, 316 S/S (REPLACED N75FHHL) to Cart
D90388-2M 23 ROTOR HOUSING MACHINED 316 S/S $2,392.00 Add ROTOR HOUSING MACHINED 316 S/S to Cart
RR5160-125L 24 RETAINING RING S/S $13.00 Add RETAINING RING S/S to Cart
WS-06LL 25 WS-06 BEARING LOCKWASHER S/S $7.00 Add WS-06 BEARING LOCKWASHER S/S to Cart
B9120M 26 COVER NUT ASSY (ABRAS. RES.) 316 S/S $147.00 Add COVER NUT ASSY (ABRAS. RES.) 316 S/S to Cart
NS-06LL 26 NS-06 BEARING LOCKNUT S/S $24.00 Add NS-06 BEARING LOCKNUT S/S to Cart
B90544-2M 27 1/4" SQ. X 5/8" LG KEY S/S $12.00 Add 1/4" SQ. X 5/8" LG KEY S/S to Cart
W25FM 28 1/4" I.D. FLAT WASHER $1.00 Add 1/4" I.D. FLAT WASHER to Cart
W25LM 29 1/4" 316 S/S SPRING LOCKWASHER (REPLACED W25LL) $1.00 Add 1/4" 316 S/S SPRING LOCKWASHER (REPLACED W25LL) to Cart
S25C100SHM 30 1/4-20 X 1" LG SOC HD CAP SCREW S/S $2.00 Add 1/4-20 X 1" LG SOC HD CAP SCREW S/S to Cart
C9049-4M 31 LOWER STATOR ASS'Y 316 S/S $235.00 Add LOWER STATOR ASS'Y 316 S/S to Cart
C9119-6M 31 LOWER STATOR ASSY, ABRAS. RES. $269.00 Add LOWER STATOR ASSY, ABRAS. RES. to Cart
B90069R 32 RULON BEARING $131.00 Add RULON BEARING to Cart
B90069JA 32 RULON "J" BEARING $188.00 Add RULON "J" BEARING to Cart
B90390C 32 STELLITE BEARING $823.00 Add STELLITE BEARING to Cart
B90101P 33 BEARING SLEEVE $177.00 Add BEARING SLEEVE to Cart
B90370C 33 STELLITE BUSHING (SLEEVE) $685.00 Add STELLITE BUSHING (SLEEVE) to Cart
C9082-5M 34 4/35 DEG. ROTOR ASS'Y 316 S/S $675.00 Add 4/35 DEG. ROTOR ASS'Y 316 S/S to Cart
C9066-2P 34 5/24 DEG ROTOR ASS'Y 17-4 S/S $648.00 Add 5/24 DEG ROTOR ASS'Y 17-4 S/S to Cart
C9066-2M 34 5/24 DEG ROTOR ASS'Y 316 S/S $603.00 Add 5/24 DEG ROTOR ASS'Y 316 S/S to Cart
C9082-5P 34 4/35 DEG. ROTOR ASS'Y 17-4 PH $683.00 Add 4/35 DEG. ROTOR ASS'Y 17-4 PH to Cart
D9050-1M 35 BAFFLE PLATE ASS'Y 316 S/S $536.00 Add BAFFLE PLATE ASS'Y 316 S/S to Cart
C90398-2M 38 MIXER SHAFT 316 S/S 60" IMMERSION $989.00 Add MIXER SHAFT 316 S/S 60" IMMERSION to Cart
B90397-2M 40 SUPPORT RODS 316 S/S 60" IMMERSION $285.00 Add SUPPORT RODS 316 S/S 60" IMMERSION to Cart
B9112S   SPANNER WRENCH (ACCESSORY TOOL FOR LOCKNUT) $182.00 Add SPANNER WRENCH (ACCESSORY TOOL FOR LOCKNUT) to Cart
