Mixer Form

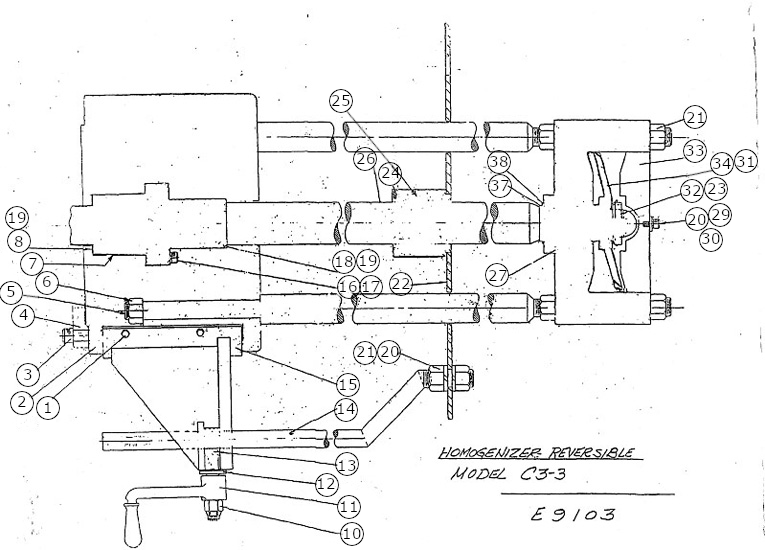

Home  >  High Shear Homogenizing Mixer (REVERSIBLE HOMOGENIZERS)  >  Model C-3-3 85" Immersion  >

Parts



Displaying items 1 - 46 of 46
Prices may change without notification

SKU Item # Name Our Price
S31C075HHL 1 5/16-18 X 3/4" HEX HD CAP SCREW S/S $1.00 Add 5/16-18 X 3/4" HEX HD CAP SCREW S/S to Cart
D90191-2I 2 MOTOR HOUSING - MACHINED $1,596.00 Add MOTOR HOUSING - MACHINED to Cart
S44C125SHS 3 7/16-14 UNC X 1-1/4 SOC HD CAP SCREW $2.00 Add 7/16-14 UNC X 1-1/4 SOC HD CAP SCREW to Cart
B90112-1M 5 SUPPORT RODS 1-1/4" $1,109.00 Add SUPPORT RODS 1-1/4" to Cart
N75CHHS 6 3/4-16 UNF HEX NUT, STEEL (REPLACED N75FHHS) $1.00 Add 3/4-16 UNF HEX NUT, STEEL (REPLACED N75FHHS) to Cart
S31C050SSS 7 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG STEEL $1.00 Add 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG STEEL to Cart
C90324S 8 MOTOR - COUPLING $194.00 Add MOTOR - COUPLING to Cart
N50CHHFLS 10 1/2-13 UNC HEX NUT STEEL (FLEXLOC) $2.00 Add 1/2-13 UNC HEX NUT STEEL (FLEXLOC) to Cart
N50CHHFLL 10 1/2-13 FLEXLOC NUT S/S $13.00 Add 1/2-13 FLEXLOC NUT S/S to Cart
B90220-2I 11 CRANK HANDLE - LOCK $85.00 Add CRANK HANDLE - LOCK to Cart
B90220-2L 11 CRANK HANDLE - LOCK 304 S/S $121.00 Add CRANK HANDLE - LOCK 304 S/S to Cart
W50F31905 12 1/2" I.D. JERGENS HARDENED WASHER $3.00 Add 1/2" I.D. JERGENS HARDENED WASHER to Cart
B90221-4L 13 BRACKET - CHOKE BOLT $35.00 Add BRACKET - CHOKE BOLT to Cart
B90365M 14 BAFFLE ROD $349.00 Add BAFFLE ROD to Cart
D9008-2S 15 BRACKET ASS'Y $263.00 Add BRACKET ASS'Y to Cart
W31LM 16 5/16" 316 S/S SPRING LOCKWASHER (REPLACED W31LS) $1.00 Add 5/16" 316 S/S SPRING LOCKWASHER (REPLACED W31LS) to Cart
S31C100SHS 17 5/16-18 UNC 1" LONG SOC. HD CAP SCREW $1.00 Add 5/16-18 UNC 1" LONG SOC. HD CAP SCREW to Cart
C90323S 18 SHAFT - COUPLING $204.00 Add SHAFT - COUPLING to Cart
C90323M 18 SHAFT - COUPLING 316 S/S $526.00 Add SHAFT - COUPLING 316 S/S to Cart
B90544-4M 19 1/4" SQ. X 1-5/8" LG KEY S/S $17.00 Add 1/4" SQ. X 1-5/8" LG KEY S/S to Cart
W75LM 20 3/4" I.D. LOCKWASHER $4.00 Add 3/4" I.D. LOCKWASHER to Cart
N75CHHM 21 3/4-16 HEX NUT, 316 S/S (REPLACED N75FHHL) $5.00 Add 3/4-16 HEX NUT, 316 S/S (REPLACED N75FHHL) to Cart
D9050-2M 22 BAFFLE PLATE ASS'Y $536.00 Add BAFFLE PLATE ASS'Y to Cart
RR3000-244-SSL 24 RETAINING RING S/S $24.00 Add RETAINING RING S/S to Cart
B90301-2N 25 BAFFLE BUSHING, SPLIT $62.00 Add BAFFLE BUSHING, SPLIT to Cart
C90260-3M 26 MIXER SHAFT 1-3/4" 85" 316 S/S $3,202.00 Add MIXER SHAFT 1-3/4" 85" 316 S/S to Cart
C90260-3MX 26 MIXER SHAFT 68-5/6" 316 S/S $3,590.00 Add MIXER SHAFT 68-5/6" 316 S/S to Cart
D90388-2M 27 ROTOR HOUSING MACHINED 316 S/S $2,392.00 Add ROTOR HOUSING MACHINED 316 S/S to Cart
W25FM 28 1/4" I.D. FLAT WASHER $1.00 Add 1/4" I.D. FLAT WASHER to Cart
W25LM 29 1/4" 316 S/S SPRING LOCKWASHER (REPLACED W25LL) $1.00 Add 1/4" 316 S/S SPRING LOCKWASHER (REPLACED W25LL) to Cart
S25C100SHM 30 1/4-20 X 1" LG SOC HD CAP SCREW S/S $2.00 Add 1/4-20 X 1" LG SOC HD CAP SCREW S/S to Cart
B90544-2M 31 1/4" SQ. X 5/8" LG KEY S/S $12.00 Add 1/4" SQ. X 5/8" LG KEY S/S to Cart
WS-06LL 32 WS-06 BEARING LOCKWASHER S/S $7.00 Add WS-06 BEARING LOCKWASHER S/S to Cart
B9120M 33 COVER NUT ASSY (ABRAS. RES.) 316 S/S $147.00 Add COVER NUT ASSY (ABRAS. RES.) 316 S/S to Cart
NS-06LL 33 NS-06 BEARING LOCKNUT S/S $24.00 Add NS-06 BEARING LOCKNUT S/S to Cart
C9082-5M 34 4/35 DEG. ROTOR ASS'Y 316 S/S $675.00 Add 4/35 DEG. ROTOR ASS'Y 316 S/S to Cart
C9066-2P 34 5/24 DEG ROTOR ASS'Y 17-4 S/S $648.00 Add 5/24 DEG ROTOR ASS'Y 17-4 S/S to Cart
C9066-2M 34 5/24 DEG ROTOR ASS'Y 316 S/S $603.00 Add 5/24 DEG ROTOR ASS'Y 316 S/S to Cart
C9082-5P 34 4/35 DEG. ROTOR ASS'Y 17-4 PH $683.00 Add 4/35 DEG. ROTOR ASS'Y 17-4 PH to Cart
C9049-4M 35 LOWER STATOR ASS'Y 316 S/S $235.00 Add LOWER STATOR ASS'Y 316 S/S to Cart
B90101P 37 BEARING SLEEVE $177.00 Add BEARING SLEEVE to Cart
B90370C 37 STELLITE BUSHING (SLEEVE) $685.00 Add STELLITE BUSHING (SLEEVE) to Cart
B90069R 38 RULON BEARING $131.00 Add RULON BEARING to Cart
B90069JA 38 RULON "J" BEARING $188.00 Add RULON "J" BEARING to Cart
B90390C 38 STELLITE BEARING $823.00 Add STELLITE BEARING to Cart
B9112S   SPANNER WRENCH (ACCESSORY TOOL FOR LOCKNUT) $182.00 Add SPANNER WRENCH (ACCESSORY TOOL FOR LOCKNUT) to Cart
