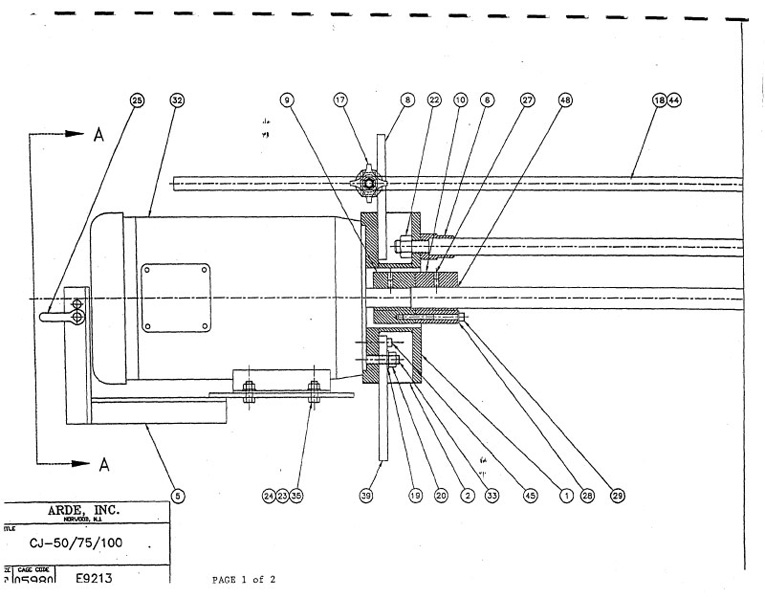

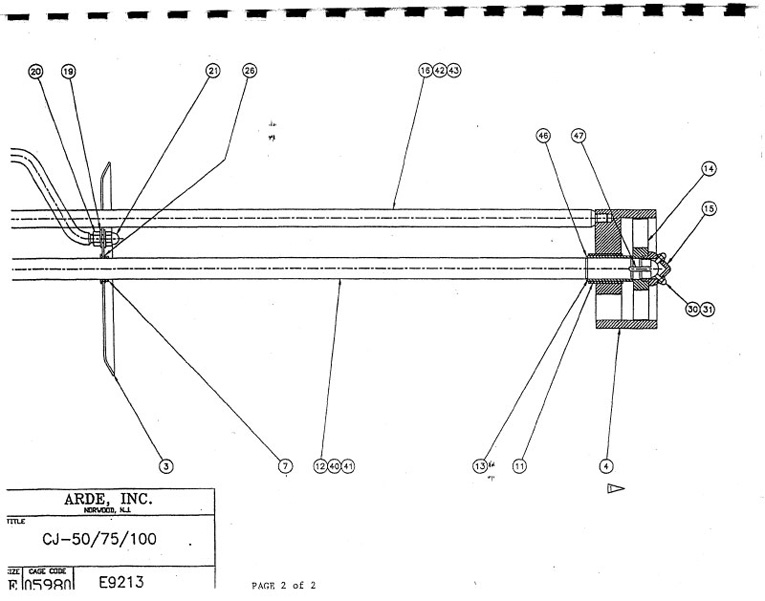

High Shear Homogenizing Mixer (REVERSIBLE HOMOGENIZERS)


Item # SKU Name Our Price
1 D90602M MOTOR HOUSING $2,977.00 + Add to Cart
2 C90603L MOTOR HSG. COVER $255.00 + Add to Cart
3 C90604-1M BAFFLE PLATE 33" IMMER. $579.00 + Add to Cart
4 D90605-2M ROTOR HOUSING 7.5 HP $2,299.00 + Add to Cart
5 D90607S LIFT BRACKET, STEEL $200.00 + Add to Cart
5 D90607L LIFT BRACKET, 304 S/S $1,072.00 + Add to Cart
6 B90594-2M SUPPORT ROD NUT 33" IMMER. $388.00 + Add to Cart
7 B90595N BAFFLE BUSHING (REPLACED B90595D) $91.00 + Add to Cart
8 B90596-1L MOUNTING BRACKET (FOR BAFFLE ROD) $624.00 + Add to Cart
9 C90600-2DU MOTOR COUPLING, DUPLEX (REPLACED C90600-2M) $1,441.00 + Add to Cart
10 C90601M SHAFT COUPLING $795.00 + Add to Cart
11 B90613C STELLITE BEARING $346.00 + Add to Cart
11 B90609JA BEARING, RULON $392.00 + Add to Cart
12 B90252-1M MIXER SHAFT 316 S/S 33" IMMER. $2,166.00 + Add to Cart
13 B90101MKOL BEARING SLEEVE 316 S/S ABRASION RESISTANT $475.00 + Add to Cart
13 B90101PKOL BEARING SLEEVE 17-4 PH ABRASION RESISTANT (REPLACED B90101P AND B90370C) $475.00 + Add to Cart
14 C90598-2MX ROTOR 6.225 DIA., 3 BLADE 7.5 HP (REPLACED C90598-2M) $989.00 + Add to Cart
15 C90597M RETAINING NUT $569.00 + Add to Cart
16 B90332M SUPPORT RODS 33" IMMER. (REPLACED B90332L) (4 REQ'D) $637.00 + Add to Cart
17 Z50L-1 KNOB (REPLACED Z50L) $55.00 + Add to Cart
18 C90524-1M BAFFLE ROD 33"/45" IMMER. $775.00 + Add to Cart
19 W50LM LOCKWASHER (REPLACED W50LL) $1.00 + Add to Cart
20 N50CHHM 1/2-13 UNC HEX NUT (REPLACED N50CHHL) (2 REQ'D) $2.00 + Add to Cart
21 N50CAHM 1/2-13 ACORN NUT $25.00 + Add to Cart
22 N75CHHM 3/4-16 HEX NUT, 316 S/S (REPLACED N75FHHL) (8 REQ'D) $7.00 + Add to Cart
23 N38CHHL 3/8-16 HEX NUT (SEAL COVER) (4 REQ'D) $1.00 + Add to Cart
24 W38LS 3/8" LOCKWASHER (4 REQ'D) $1.00 + Add to Cart
25 A54S LIFT BRACKET SHACKLE $50.00 + Add to Cart
26 RR5100-150 RETAINING RING $17.00 + Add to Cart
27 S31C050SSM 5/16-18 X 1/2" SOC. HD CAP SCREW HALF DOG 316 S/S (3 REQ'D) $17.00 + Add to Cart
28 W31LM 5/16" 316 S/S SPRING LOCKWASHER (REPLACED W31LS) (11 REQ'D) $1.00 + Add to Cart
29 S31C300HHM 5/16-18 X 3" LG. SCREW (3 REQ'D) $4.00 + Add to Cart
30 N25FAHM ACORN NUT 1/4-28 UNF (2 REQ'D) $9.00 + Add to Cart
31 S25F050SSM SCREW 1/4-28 x 1/2" SOC. SET (2 REQ'D) $4.00 + Add to Cart
33 S50C250SDL 1/2-13 X 2-1/2" STUD (2 REQ'D) $10.00 + Add to Cart
34 S50C150HHL 1/2-13 UNC X 1-1/2" LG SOC HD CAP SCREW STEEL (2 REQ'D) $3.00 + Add to Cart
35 S38C100HHL HEX HD CAP SCREW 3/8-16-1" (4 REQ'D) $1.00 + Add to Cart
36 B90221-5L BAFFLE ROD CHOKE BOLT $273.00 + Add to Cart
37 W38FOL FLAT WASHER, 3/8" X 1.5 O.D. $29.00 + Add to Cart
38 N38CHHFLL 3/8-16 FLEXLOC NUT $14.00 + Add to Cart
39 B90596-2L MOUNTING BRACKET $364.00 + Add to Cart
45 S31C100HHM 5/16-18 X 1" LG. HEX HD SCREW (2 REQ'D) $2.00 + Add to Cart
46 RR5160-125L RETAINING RING S/S $17.00 + Add to Cart
47 B90544-2M 1/4" SQ. X 5/8" LG ROTOR KEY S/S $12.00 + Add to Cart
48 B90544-5M (FOR USE WITH C90324DU) 1/4" SQ. X 2" SHAFT KEY 316 S/S (2 REQ'D) $18.00 + Add to Cart
